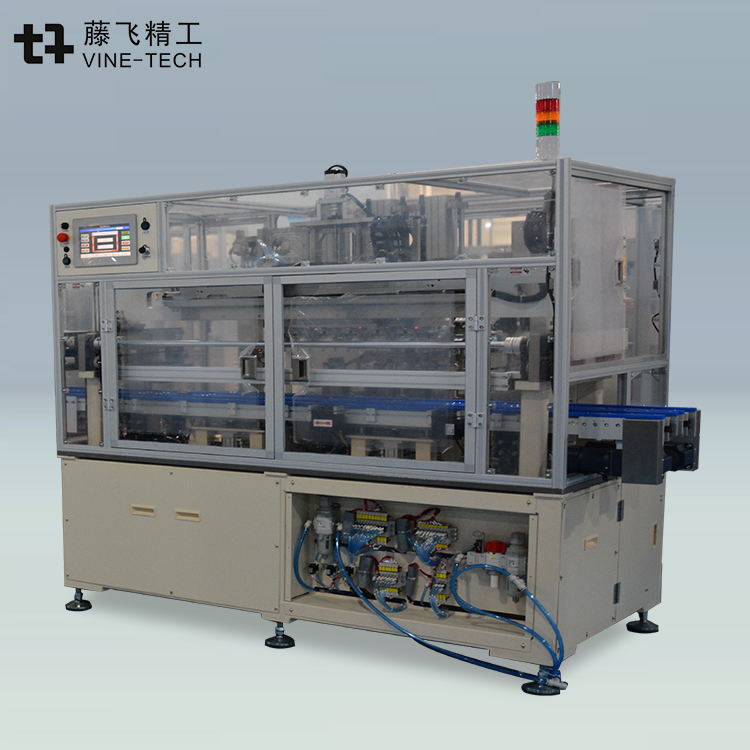

This production line is used for the automated production of stator wires for automotive brake motors. The production line comprises processes such as automatic feeding and disassembly of iron cores, insertion of insulation skeletons, winding, rounding, laser welding, BUSBAR installation, copper bar riveting, and performance testing. Each process is connected by flexible lines for serial conveyance.

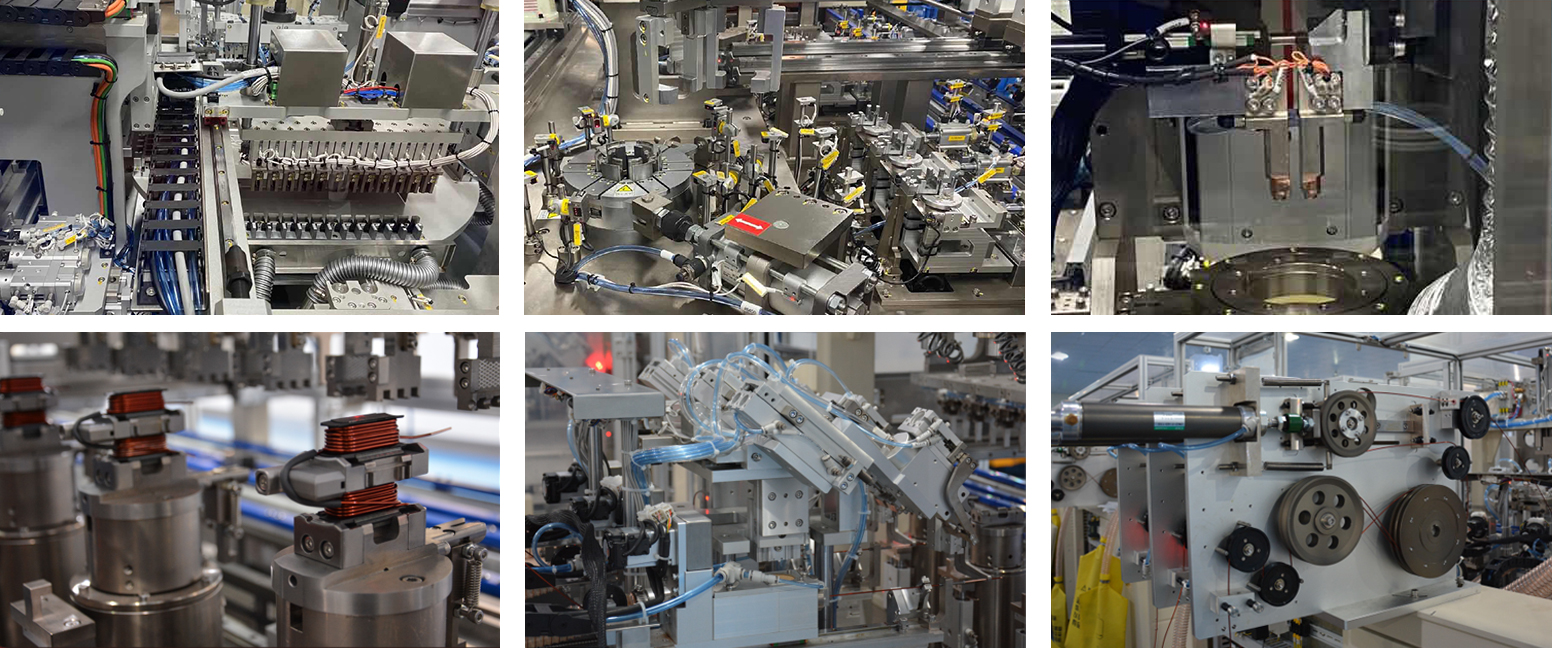

Functions and characteristics of EPS motor stator production line
This production line is specifically designed for the production process of stator cores, which includes the insertion of insulation frames, quad-wire winding, and rounding into a circular shape;
▲This production line is fully automated and unmanned, with no direct participation of operators in production;
▲Automatic decomposition and height detection of iron core, automatic insertion of insulating framework;
▲During the winding process, automatic insertion of insulation sleeves and servo control of stripping length are implemented;
▲Fully automatic servo control for quad-wire winding and paint stripping length;
▲Automatic thread head clamping and shaping;
▲Automatic circle forming;
▲ QR code or RFID is used for process data collection and traceability.
